Garmin Health API Data - Daily Summary
This Guide will help you setup the Garmin Account to start collecting Garmin Health summary data and retrieve the data from the mEMA Website.
Setup Garmin Companion
In order to be able to see Garmin Data summary, first you need to follow the steps bellow in order connect mEMA participant account with a Garmin account.
- Step 1: Create participant account
- Before you begin, make sure you have a mobile code created for your participant
- Step 2: Register with Garmin Companion

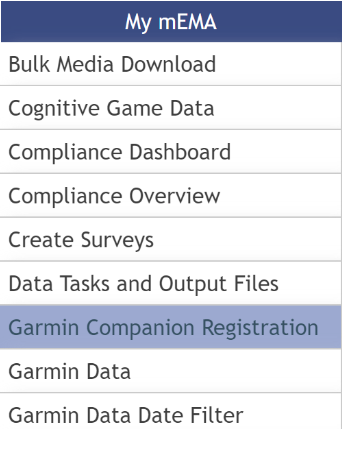

- Go to "My mEMA" dropdown menu
- Select "Garmin Companion Registration"

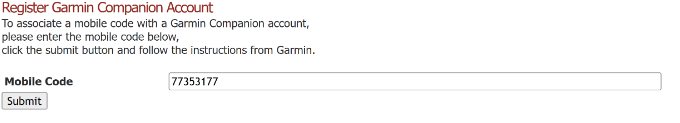

- Step 3: Input Mobile Code
- Enter the mobile code for the participant. (This has to be done one participant/mobile code at a time)
- Click on "Submit" button
- You will be redirect to the Garmin Website

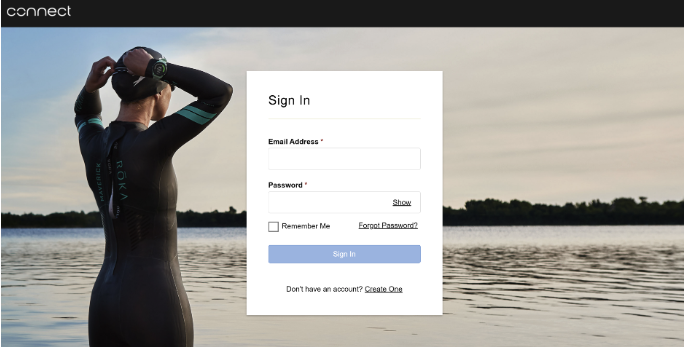

- Step 4: Garmin Connect Login
- On the Garmin website, input the participant's Garmin Connect login credentials. (if they have not created their credentials, follow Steps 5 and 6)
- On the Garmin website, input the participant's Garmin Connect login credentials. (if they have not created their credentials, follow Steps 5 and 6)
- Step 5: Create a Free Garmin Account (if necessary)

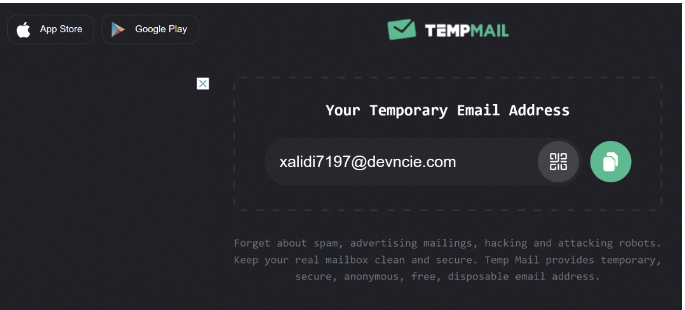

- Participants can use a temporary email generator website to create a temporary email address. This website is a good option for this: https://temp-mail.org/en/
- Use this email to create a free Garmin account on the Garmin Connect app.
- Step 6: Link Mobile Code to Garmin Connect App
- Ensure the participant has created their free account on the Garmin Connect app on their phone.
- Once done, input their credentials on the Garmin Connect website to link their mobile code to the app.
- Connect your Garmin Device with the Garmin Connect app and finish the Onboarding process
IMPORTANT NOTE!
- If on Step 3 you are not presented with the Login Form, then you must stop the process, go to Garmin Connect website and log out from the account you're currently logged in. If you continue the process then you might end up linking multiple participant accounts (mobile codes) with the same Garmin account, which will cause for misleading data.
Retrieve Daily Summary data
After you finished connecting the mEMA participant account (Mobile code) with Garmin Connect you can go on the Garmin Health API Data page on the mEMA website and download the Daily Summary data for your participant.
Steps:
1. Under "My mEMA" dropdown Select Garmin Health API Data

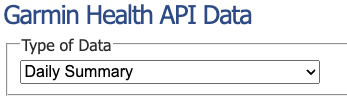

2. From the "Type of Data" dropdown select "Daily Summary"

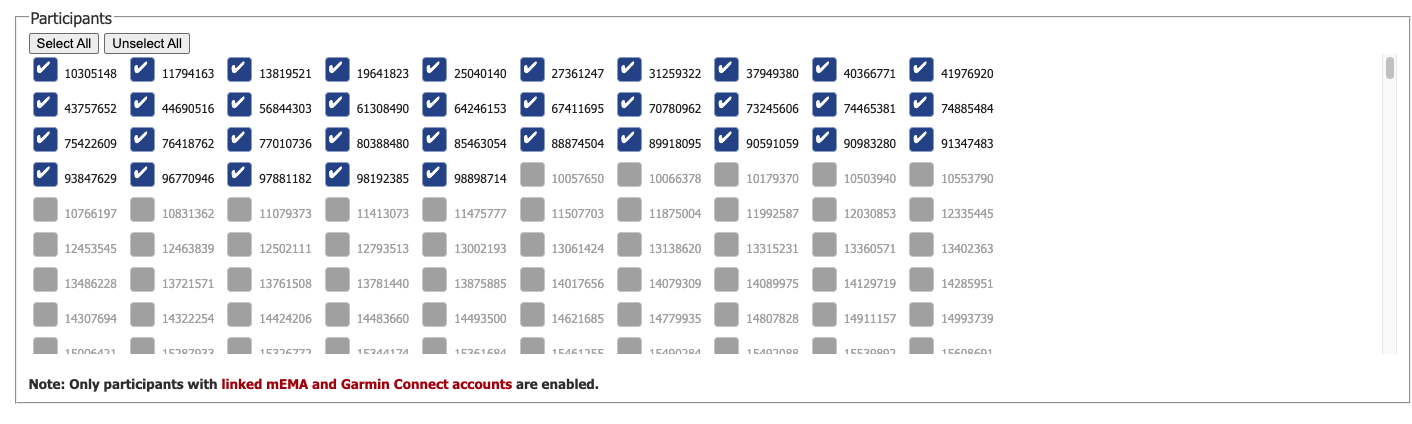

3. From the list of participants select the participant(s) you wish to view the Daily Summary data
- By Default all available mobile codes will be selected
- Mobile codes that are Grayed out are not connected through the Garmin Companion Registration therefore there's no data to be retrieved from them
4. Input your Date Range
5. Click on Generate Report

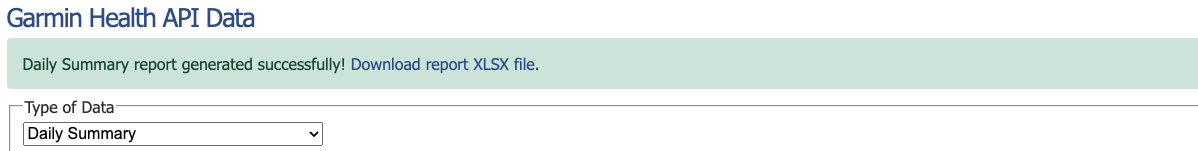

6. If there's data available a CSV file will be generated and will be available to be downloaded

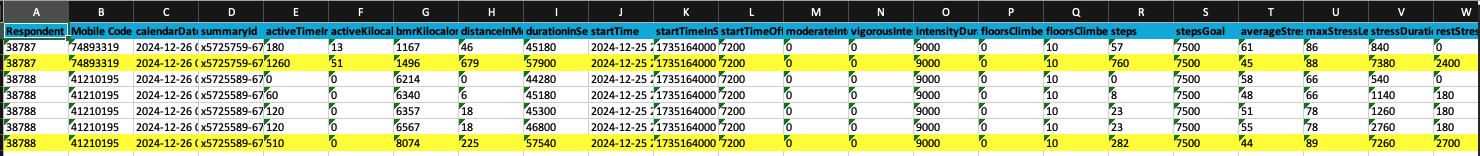

In the CSV file, for each participant, the latest uploaded/retrieved data will be highlighted in yellow.
Additional options for Daily Summary
- Include Final Summary Data Only - When this is selected, the report will contain only Final data. What this refers to for Daily summary is the row that contains data from the last sync of the day(row that is highlighted in ye, and for Sleep Summary this means the last row of data that's been processed by the Garmin algorithm.
- Include Summary Data On Scheduled Dates Only - When this is selected, the report will contain only data for when participant had an assignment. Meaning that if participant had sleep data (for example) throughout the week, but only assignment for 1 day of the week, then the report will only contain sleep data for the same day of the scheduled assignment.
- This includes days for which an assignment was scheduled but participant didn't responded to the assignment.
- This reports data only for scheduled assignments (Repeating, Momentary and Scheduled), not for OnDemand assignments.
Each Daily Summary may contain the following information:
| Property | Type | Description |
| Respondent ID | Integer | mEMA participant ID |
| Mobile Code | Integer | mEMA participant Mobile Code |
| calendarDate | string | The calendar date this summary would be displayed on in Garmin Connect. The date format is ‘yyyy-mmdd’. |
| summaryId | string | Unique identifier for the summary. |
| activeTimeInSeconds | Integer | Portion of the monitoring period (in seconds) in which the device wearer was considered Active. This relies on heuristics internal to each device. |
| activeKilocalories | integer | Active kilocalories (dietary calories) burned during the monitoring period. This includes only the calories burned by the activity and not calories burned as part of the basal metabolic rate (BMR). |
| bmrKilocalories | integer | BMR Kilocalories burned by existing Basal Metabolic Rate (calculated based on user height/weight/age/other demographic data). |
| distanceInMeters | floating point | Distance traveled in meters. |
| durationInSeconds | integer | Length of the monitoring period in seconds. 86400 once a full day is complete, but less if a user syncs mid-day. |
| startTime | string | Start time of the activity displayed as Date and time. |
| startTimeInSeconds | integer | Start time of the activity in seconds since January 1, 1970, 00:00:00 UTC (Unix timestamp). |
| startTimeOffsetInSeconds | integer | Offset in seconds to add to startTimeInSeconds to derive the “local” time of the device that captured the data. |
| moderateIntensityDurationInSeconds | integer | Cumulative duration of activities of moderate intensity. Moderate intensity is defined as activity with MET value range 3-6. |
| vigorousIntensityDurationInSeconds | integer | Cumulative duration of activities of vigorous intensity. Vigorous intensity is defined as activity with MET value > 6. |
| intensityDurationGoalInSeconds | integer | The user’s goal for consecutive seconds of moderate to vigorous intensity activity for this monitoring period. |
| floorsClimbed | integer | Number of floors climbed during the monitoring period. |
| floorsClimbedGoal | integer | The user’s goal for floors climbed in this monitoring period. |
| steps | integer | Count of steps recorded during the monitoring period. |
| stepsGoal | integer | The user’s steps goal for this monitoring period. |
| averageStressLevel | integer | An abstraction of the user’s average stress level in this monitoring period, measured from 1 to 100, or -1 if there is not enough data to calculate average stress. Scores between 1 and 25 are considered “rest” (i.e not stressful), 26-50 as “low” stress, 51-75 “medium” stress, and 76-100 as “high” stress. |
| maxStressLevel | integer | The highest stress level measurement taken during this monitoring period |
| stressDurationInSeconds | integer | The number of seconds in this monitoring period where stress level measurements were in the stressful range (26-100). |
| restStressDurationInSeconds | integer | The number of seconds in this monitoring period where stress level measurements were in the restful range (1 to 25). |
| activityStressDurationInSeconds | integer | The number of seconds in this monitoring period where the user was engaging in physical activity and so stress measurement was unreliable. All duration in this monitoring period not covered by stress, rest, and activity stress should be considered Uncategorized, either because the device was not worn or because not enough data could be taken to generate a stress score. |
| lowStressDurationInSeconds | integer | The portion of the user’s stress duration where the measured stress score was in the low range (26-50). |
| mediumStressDurationInSeconds | integer | The portion of the user’s stress duration where the measured stress score was in the medium range (51- 75). |
| highStressDurationInSeconds | integer | The portion of the user’s stress duration where the measured stress score was in the high range (76-100). |
| stressQualifier | string | A qualitative label applied based on all stress measurements in this monitoring period. Possible values: unknown, calm, balanced, stressful, very_stressful, calm_awake, balanced_awake, stressful_awake, very_stressful_awake. This matches what the user will see in Garmin Connect. It is recommended that implementations that use the stressQualifier be tolerant of unknown values in case more granular values are added. |
| minHeartRateInBeatsPerMinute | integer | Minimum of heart rate values captured during the monitoring period, in beats per minute. |
| maxHeartRateInBeatsPerMinute | integer | Maximum of heart rate values captured during the monitoring period, in beats per minute. |
| averageHeartRateInBeatsPerMinute | integer | Average of heart rate values captured during the last 7 days, in beats per minute. The average heart rate value for the monitoring period can be calculated based on the data from timeOffsetHeartRateSamples. |
| restingHeartRateInBeatsPerMinute | integer | Average heart rate at rest during the monitoring period, in beats per minute |
| FINAL | Integer | Represents if the current row contains the final data of the day or not. Values are 0 - if not final, or 1 - if it's final. Note that this value is subject to change if new data for the current day is added. |
