How To: Use images

We cover a lot of ground in this article!


Adding Images to the Photo Library

1 Adjust the image filename:
    - Only lowercase letters

    - No spaces

    - Example: underscores_as_spaces.jpg


2 Optimize image:

  - We recommend the image be square or close to square

  - Optimal file size is 300x300 pixels

  - In order to enable larger sizes for images, you'll need to use "_LARGEIMG" at the end of the analytics code. For "Text Entry" question types, the analytics code "_LARGEIMG" needs to be added to the question analytics code. For "Single Selection" and "Multiple Selection" question types the analytics code "_LARGEIMG" needs to be added to the answer analytics code.


3 Drag the images one by one directly from your folder into the "survey images" field:



Use Images as a Response Option


Images can be used instead of text as response options in the following question types:

Single Selection

Multiple Selection
Continuous Sliders
Discrete Sliders
Matrix




1 Click Edit next to the question to open the wizard pictured below

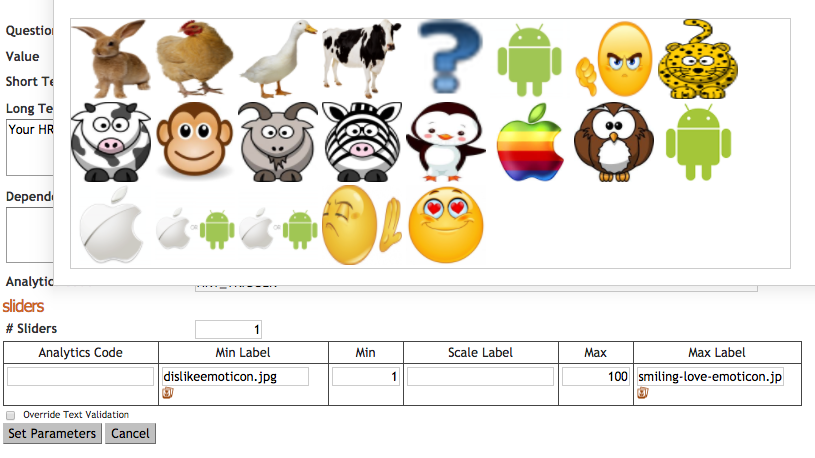

2 Click the image icon next to the response field to select an image from your survey's photo library pictured below





3 Type a label for the image into the Short Text field and press Tab.

    - Enter the image's filename in the Long Text field.

    -The Code field will already be filled in, but you can edit it.

    - Click "Set Parameters" to save.




     Use Images in the Text of a Question


1 After adding the image to the library enter the filename of the image into the Long Text box .







Images in the App

See how images will appear when viewed in a survey.


1 Single Selection and Multiple Selection Questions

    - Both square and rectangular images to be used in the response fields.




2 Matrix Questions (to the right)

  - Allow only square images.

  - Rectangle images appear distorted.




3 Continuous Sliders

and Discrete Sliders

- Show the images at either end.








Allow User to Take a Photo

You can prompt the participant to take a photo during the assessment

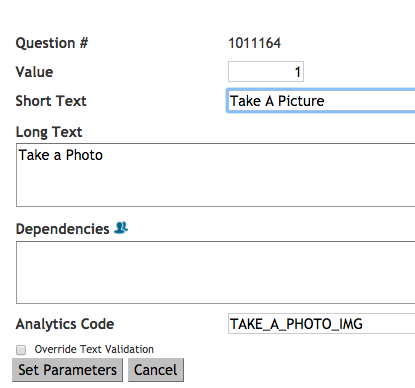

1 Create a Text Entry Question


2 Type something in the Short Text box.



3 Add the suffix "_IMG" in the Analytics Code field.

Example the Analytics Code might me"HOME_IMG" or "LUNCH_IMG"

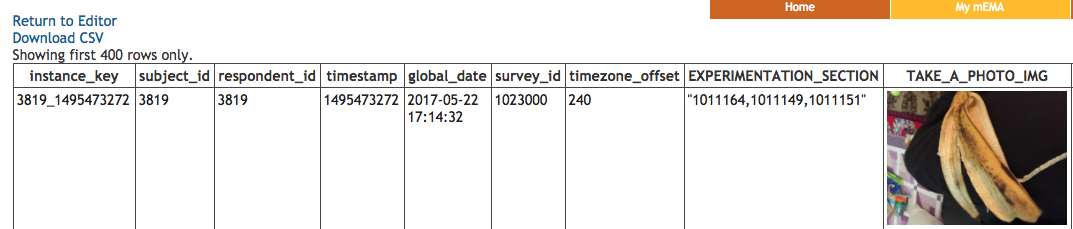

4 When the participant uploads their data, the images will be on to the mEMA server and viewable in the

     Flat Data File.


5 The question appears like so:
